Plasma Welding Torches

... here you will find the right plasma torch for every welding task

PHW 20-2 / PHW 21

Range of application	: 0.05 to 20 (25) A DC-
Weldable thickess	: 0.05 to 1 mm
Nozzle variations	: 5 (0.5 to 1.2 mm)
Electrode diameter	: 1.0 mm

Very small water-cooled powerful 20 A micro plasma welding torch for plasma welding of foils, wires and sieves.

PMW 20 / PMW 21

Range of application	: 0.05 to 20 A DC-
Weldable thickness	: 0.05 to 1 mm
Nozzle variations	: 5 (0.5 bis 1.2 mm)
Electrode diameter	: 1.0 mm

Very small water-cooled micro plasma welding torch like PHW 20, but in 180° machine version (pencil torch).

PlaTo 25

Range of application	: 0.05 to 25 A DC-
Weldable thickness	: 0.05 to 1 mm
Nozzle variations	: 300 (0.3 to 3.6 mm)
Electrode diameter	: 1.0/1.5 mm

Very small plasma pencil welding torch for manual as well as mechanised welding of filigree workpieces with hard-to-reach welding positions.

PHW 50 / PHW 51

Range of application	: 0.05 to 50 A DC-
Weldable thickness	: 0.05 to 3 mm
Nozzle variations	: 13 (0.8 to 2.0 mm)
Electrode diameter	: 1.0/1.6 mm

Small water-cooled yet powerful 50 A micro plasma welding torch for welding with reverse or straight polarity of the electrode. Can therefore also be used for welding aluminium.

PMB 50

Range of application	: 0.05 to 50 A DC-
Weldable thickness	: 0.05 to 3 mm
Nozzle variations	: 12 (0.6 to 1.8 mm)
Electrode diameter	: 1.0/1.5 mm

Small water-cooled and thus powerful Müweld 50 A micro plasma welding torch for plasma welding with reverse or straight polarity of the electrode. Also available as hand torch PHB 50.

PJB 50

Range of application	: 0.05 to 50 A DC-
Weldable thickness	: 0.05 to 3 mm
Nozzle variations	: 12 (0.6 to 1.8 mm)
Electrode diameter	: 1.0/1.5 mm

Further developed 50 A plasma welding torch from the PB 50 series.

PHW 100P

Range of application	: 1 to 100 A DC-
Weldable thickness	: 0.05 to 4 mm
Nozzle	: 2.3 mm
Electrode diameter	: 2.4 mm

Small water-cooled and therefore high performance 100 A plasma powder welding torch for both PTA (PPAW) plasma joint welding and plasma build-up welding.

PTi100

Range of application	: 0.1 to 100 A DC-
Weldable thickness	: 0.05 to 4 mm
Nozzle variations	: 15 (1.0 to 3.2 mm)
Electrode diameter	: 1.5 mm

Extremely small water-cooled and thus, despite the minimal dimensions, powerful 100 A plasma welding torch for internal welding of components from 25 mm internal diameter.

PTi150

Range of application	: 0.1 to 150 A DC-
Weldable thickness	: 0.5 to 6 mm
Nozzle variations	: 15 (1.0 to 3.2 mm)
Electrode diameter	: 2.4 mm

Extremely small water-cooled and thus, despite the minimal dimensions, powerful 150 A plasma welding torch for internal welding of components from 25 mm internal diameter.

PlaTo100-HS

Range of application	: 0.05 to 100 A DC-
Weldable thickness	: 0.05 to 4 mm
Nozzle variations	: 300 (0.3 to 3.6 mm)
Electrode diameter	: 1.0/1.5/2.4/3.2 mm

Smallest 100 A plasma hand welding torch available on the market with ergonomic handle and double push button for plasma welding with reverse or straight polarity of the electrode.

PlaTo100-M

Range of application	: 0.05 to 100 A DC-
Weldable thickness	: 0.05 to 4 mm
Nozzle variations	: 300 (0.3 to 3.6 mm)
Electrode diameter	: 1.0/1.5/2.4/3.2 mm

Smallest 100 A plasma machine welding torch available on the market.

PlaTo100-90°

Range of application	: 0.05 to 100 A DC-
Weldable thickness	: 0.05 to 4 mm
Nozzle variations	: 300 (0.3 to 3.6 mm)
Electrode diameter	: 1.0/1.5/2.4/3.2 mm

100 A plasma machine welding torch in special design. The 90° angled welding head allows the use as orbital welding torch as well as welding in pipes from 50 mm inner diameter.

PlaTo100-G

Range of application	: 0.05 to 100 A DC-
Weldable thickness	: 0.05 to 4 mm
Nozzle variations	: 300 (0.3 to 3.6 mm)
Electrode diameter	: 1.0/1.5/2.4/3.2 mm

Smallest 100 A plasma machine welding torch in gooseneck shape available on the market.

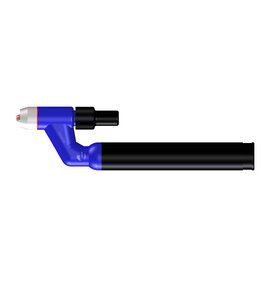

PlaTo104-M

Range of application	: 0.05 to 100 A DC-
Weldable thickness	: 0.05 to 4 mm
Nozzle variations	: 300 (0.3 to 3.6 mm)
Electrode diameter	: 1.0/1.5/2.4/3.2 mm

Smallest 100 A plasma machine welding torch available on the market with simplified electrode clamping system.

PlaTo104-H

Range of application	: 0.05 to 100 A DC-
Weldable thickness	: 0.05 to 4 mm
Nozzle variations	: 300 (0.3 to 3.6 mm)
Electrode diameter	: 1.0/1.5/2.4/3.2 mm

Smallest 100 A plasma hand welding torch available on the market with simplified electrode clamping system.

PlaTo151-H

Range of application	: 0,5 to 150 A DC-
Weldable thickness	: 0,1 to 6 mm
Nozzle variation	: 300 (0,3 to 3,6 mm)
Electrode diameter	: 1,0/1,5/2,4/3,2 mm

Smallest 150 A plasma hand welding torch available on the market in standard design with round 22 mm handle.

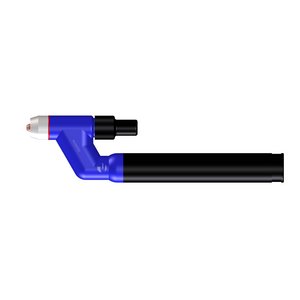

PlaTo151-M

Range of application	: 0.5 to 150 A DC-
Weldable thickness	: 0.1 to 6 mm
Nozzle variations	: 300 (0.3 to 3.6 mm)
Electrode diameter	: 1.0/1.5/2.4/3.2 mm

Smallest 150 A plasma machine welding torch available on the market in standard design with 30 mm offset take-up shaft.

PlaTo151-G

Range of application	: 0.5 to 150 A DC-
Weldable thickness	: 0.1 to 6 mm
Nozzle variations	: 300 (0.3 to 3.6 mm)
Electrode diameter	: 1.0/1.5/2.4/3.2 mm

Smallest 150 A plasma machine welding torch in gooseneck shape available on the market.

PlaTo151-HKD

Range of application	: 0.5 to 150 A DC-
Weldable thickness	: 0.1 to 6 mm
Nozzle variations	: 300 (0.3 to 3.6 mm)
Electrode diameter	: 1.0/1.5/2.4/3.2 mm

150 A hand plasma welding torch for plasma brazing with integrated cold wire supply through the torch handle. Additional switches for wire feed and welding current.

PlaTo151-HP

Range of application	: 0.5 to 150 A DC-
Weldable thickness	: 0.1 to 2 mm
Nozzle variations	: 300 (0.3 to 3.6 mm)
Electrode diameter	: 1.0/1.5/2.4/3.2 mm

Light weight and handy 150 A hand welding torch for plasma spot welding up to 2 mm sheet thickness.

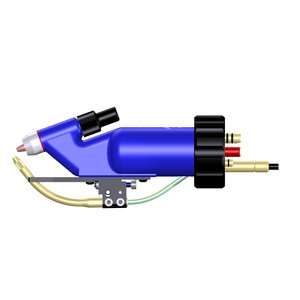

PlaTo151-Rob20°

Range of application	: 0.5 to 150 A DC-
Weldable thickness	: 0.1 to 6 mm
Nozzle variations	: 300 (0.3 bis 3.6 mm)
Electrode diameter	: 1.0/1.5/2.4/3.2 mm

Compact and at the same time with high power density equipped 20° robot plasma welding torch with medium interface designed as quick-change unit.

PlaTo151-Rob0°-Lang

Range of application	: 0.5 to 150 A DC-
Weldable thickness	: 0.1 to 6 mm
Nozzle variations	: 300 (0.3 to 3.6 mm)
Electrode diameter	: 1.0/1.5/2.4/3.2 mm

Compact and at the same time with high power density equipped 0° robot plasma welding torch with medium interface designed as quick-change unit.

PlaTo250-M

Range of application	: 1 to 250 A DC-
Weldable thickness	: 0.05 to 8 mm
Nozzle variations	: 42 (1.0 to 4.2 mm)
Electrode diameter	: 1.0/1.5/2.4/3.2 mm

Powerful 250 A plasma welding torch with the highest possible power density and the smallest possible external dimensions.

PlaTo250-Rob20°

Range of application	: 1 to 250 A DC-
Weldable thickness	: 0.05 to 8 mm
Nozzle variations	: 42 (1.0 to 4.2 mm)
Electrode diameter	: 1.0/1.5/2.4/3.2 mm

Compact and at the same time equipped with the highest power density 20° robotic plasma welding torch with medium interface designed as a quick-change unit.

PHW 250

Range of application	: 5 to 250 A DC-
Weldable thickness	: 1 to 6 mm
Nozzle variations	: 4 (2.0 to 3.5 mm)
Electrode diameter	: 4.0 mm

Water-cooled powerful 250 A hand plasma welding torch for plasma welding with straight or reverse polarity of the electrode.

AMW 250

Range of application TIG Plasma	: 10 to 250 A DC- : 10 to 200 A DC-
Weldable thickness	: 2 to 6 mm
Nozzle variations	: 22 (1.0 to 5.0 mm)
Electrode diameter	: 3,2/4.0 mm

Water-cooled powerful 250 A TIG HILIBO welding torch, which can also be used for plasma welding with straight or reverse polarity of the electrode.

PTi300

Range of application	: 10 to 300 A DC-
Weldable thickness	: 1 to 8 mm
Nozzle variations	: 12 (1.8 to 4.0 mm)
Electrode diameter	: 4.0 mm

Water-cooled and powerful 300 A plasma welding torch with quick connect system for inside welding of components from 65 mm internal diameter.

PMW 350

Range of application	:	10 to 350 A DC-
Weldable thickness	:	2 to 10 mm
Nozzle variations	:	25 (2.0 to 4.0 mm, also extra long)
Electrode diameter	:	4.0 mm

High performance 350 A plasma machine welding torch for mechanised plasma welding with keyhole effect. Laminar shielding gas flow through specially designed trailing gas nozzle.

PMW 350-L90

Range of application	:	10 to 350 A DC-
Weldable thickness	:	2 to 10 mm
Nozzle variations	:	25 (2.0 to 4.0 mm; also extra long)
Electrode diameter	:	3.2/4.0 mm

High performance 350 A plasma machine welding torch for mechanised plasma welding with keyhole effect in 90° design for internal pipe welding. Electrode clamping unit can be preset outside the torch and quickly changed from the rear without nozzle disassembly.

PMW 350-L180

Range of application	:	10 to 350 A DC-
Weldable thickness	:	2 to 10 mm
Nozzle variations	:	25 (2.0 to 4.0 mm; also extra long)
Electrode diameter	:	3.2/4.0 mm

High performance 350 A plasma machine welding torch for mechanised plasma welding with keyhole effect. Electrode clamping unit can be preset outside the torch and quickly changed from the rear without nozzle disassembly.

PMW 350-2

Range of application	: 10 to 350 A DC-
Weldable thickness	: 2 to 10 mm
Nozzle variations	: 69 (1.4 to 6.0 mm)
Electrode diameter	: 3.2/4.0 mm

High performance 350 A plasma machine welding torch for mechanised plasma welding with keyhole effect.

PMW 350-S90

Range of application	: 10 to 350 A DC-
Weldable thickness	: 2 to 10 mm
Nozzle variations	: 69 (1.4 to 6.0 mm)
Electrode diameter	: 3.2/4.0/4.8 mm

High performance 350 A plasma machine welding torch for mechanised plasma keyhole welding with specially angled 90° design for internal pipe welding. Electrode clamping unit can be preset outside the torch and quickly changed from the rear without nozzle disassembly.

PMW 350-S180

Range of application	: 10 to 350 A DC-
Weldable thickness	: 2 to 10 mm
Nozzle variations	: 69 (1.4 to 6.0 mm)
Electrode diameter	: 3.2/4.0/4.8 mm

Powerful 350 A plasma machine welding torch for mechanised plasma keyhole welding. Electrode clamping unit can be preset outside the torch and quickly changed from the rear without nozzle disassembly.

PMW 500-SP3

Range of application	: 50 to 500 A DC-
Weldable thickness	: 3 to 12 mm
Nozzle variations	: 2 (3.0 to 3.8 mm)
Electrode diameter	: 6.4/8.0/10.0 mm

Powerful 500 A plasma machine welding torch for mechanised plasma keyhole welding. Large-dimensioned and water-cooled electrode allows non-interrupted welding for several days without changing wearing parts.
